ADA 101 – Top Extension at Stairs

ADA 101 info graphic with ADAS 2010 section 505.10.2 code text and example pictures2010 ADAS 505.10.2 Top Extension at Stairs

At the top of a stair flight, handrails shall extend horizontally above the landing for 12 inches minimum beginning directly above the first riser nosing. Extensions shall return to a wall, guard, or the landing surface, or shall be continuous to the handrail of an adjacent stair flight.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Non-Circular Cross Sections

ADA 101 info graphic with ADAS 2010 section 505.7.2 code text and example pictures2010 ADAS 505.7.2 Non-Circular Cross Sections

Handrail gripping surfaces with a non-circular cross section shall have a perimeter dimension of 4 inches minimum and 6 1/4 inches maximum, and a cross-section dimension of 2 1/4 inches maximum.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

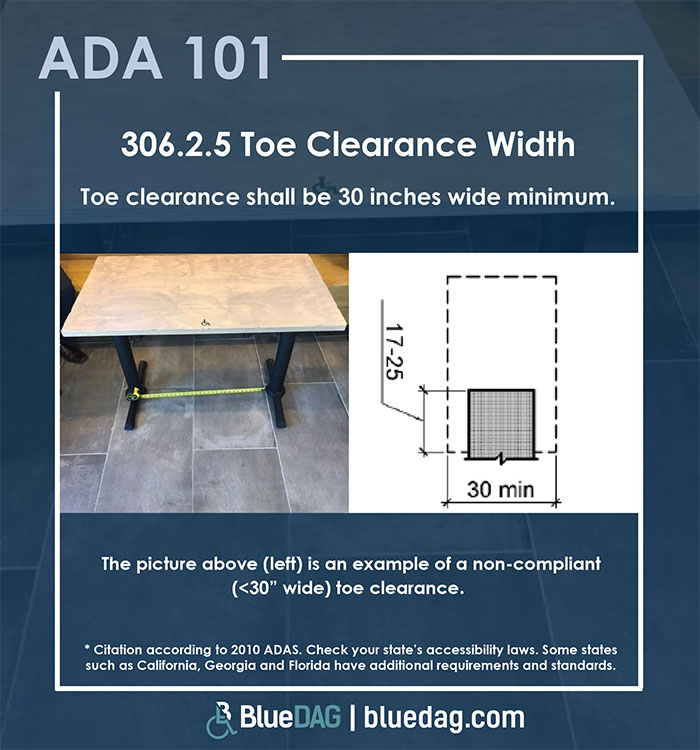

ADA 101 – Toe Clearance Width

ADA 101 info graphic with ADAS 2010 section 306.2.5 code text and example pictures2010 ADAS 306.2.5 Toe Clearance Width

Toe clearance shall be 30 inches wide minimum.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

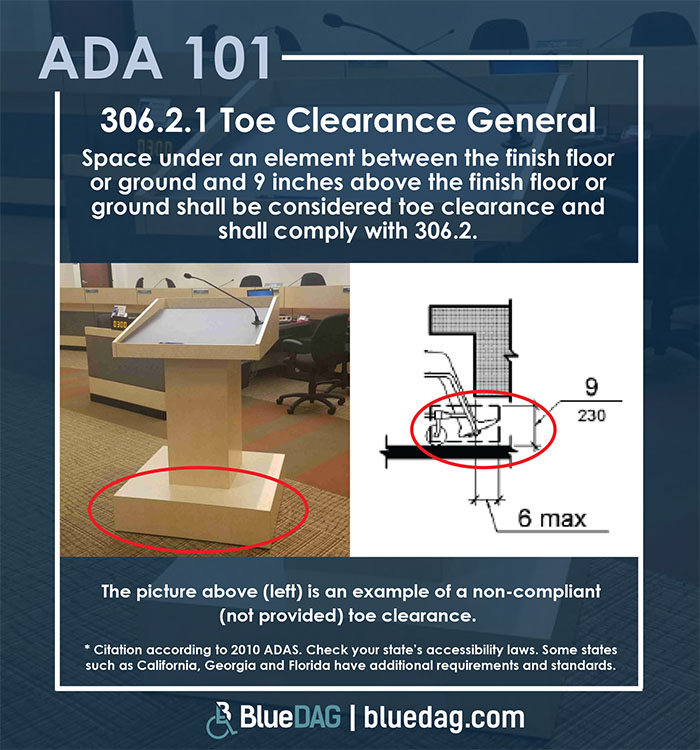

ADA 101 – Toe Clearance General

ADA 101 info graphic with ADAS 2010 section 306.2.1 code text and example pictures2010 ADAS 306.2.1 Toe Clearance General

Space under an element between the finish floor or ground and 9 inches above the finish floor or ground shall be considered toe clearance and shall comply with 306.2.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Access Aisle Location

ADA 101 info graphic with ADAS 2010 section 502.3.4 code text and example pictures2010 ADAS 502.3.4 Access Aisle Location

Access aisles shall not overlap the vehicular way. Access aisles shall be permitted to be placed on either side of the parking space except for angled van parking spaces which shall have access aisles located on the passenger side of the parking spaces.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.



ADA 101 – Access Aisle Marking

ADA 101 info graphic with ADAS 2010 section 502.3.3 code text and example pictures2010 ADAS 502.3.3 Access Aisle Marking

Access aisles shall be marked so as to discourage parking in them.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Access Aisle Length

ADA 101 info graphic with ADAS 2010 section 502.3.2 code text and example pictures2010 ADAS 502.3.2 Access Aisle Length

Access aisles shall extend the full length of the parking spaces they serve.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Access Aisle Width

ADA 101 info graphic with ADAS 2010 section 502.3.1 code text and example pictures2010 ADAS 502.3.1 Access Aisle Width

Access aisles serving car and van parking spaces shall be 60 inches wide minimum.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Ramp Landing Length

ADA 101 info graphic with ADAS 2010 section 405.7.3 code text and example picturesADAS 2010 405.7.3 Ramp Landing Length

The landing clear length shall be 60 inches long minimum.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.

ADA 101 – Ramp Landing Change in Direction

ADA 101 info graphic with ADAS 2010 section 405.7.4 text and example pictures

2010 ADAS 405.7.4 Ramp Landing Change in Direction

Ramps that change direction between runs at landings shall have a clear landing 60 inches minimum by 60 inches minimum.

Citation according to 2010 ADAS. Check your state’s accessibility laws. Some states such as California, Georgia and Florida have additional requirements and standards.
